high precision vertical machining center VDL600A VDL600A manufacturer from China Dalian Dahui Science & Technology Development Co., Ltd

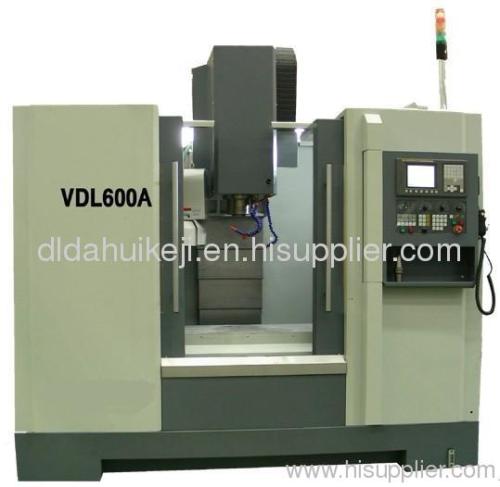

high precision vertical machining center VDL600A

Payment Terms:	T/T,L/C
Place of Origin:	Liaoning, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: VDL600A

Production Capacity: 40sets per month

Delivery Date: 100days

X/Y/Z travel: 600/420/520mm

Main spindle max speed: 8000/10000(op)rpm

Tool changer capacity: 16/24

Means of Transport: Ocean

Packing: seaworthy packing

Worktable size: 800*420mm

Distance from main spindle top to worktable face: 150-670mm

X/Y/Z quick travel: 24/24/20 m/min

Weight: 4800kg

1.high precision thread pitch compensation
2.high strength casting technology
3.high torsion tooth form leather belt
4.CE safety specification

Index name
unit
VDL600A
Worktable size
mm
800×420
X/Y/Z travel
mm
600/420/520
Distance from main spindle top to worktable face
mm
150-670
Main spindle max speed
rpm
8000/10000(op)
X/Y/Z quick travel
m/min
24/24/20
Tool changer capacity (bamboo hat type /manipulator type

16/24
Weight
kg
4800
