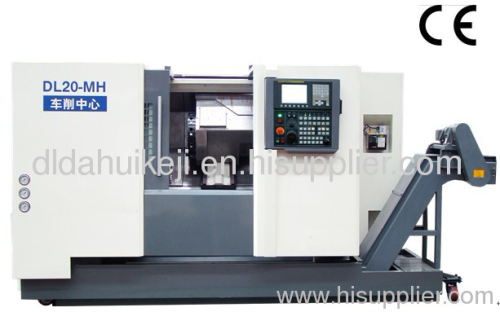

DL20MH TURNING CENTER DL20MH manufacturer from China Dalian Dahui Science & Technology Development Co., Ltd

Payment Terms:	T/T,L/C
Place of Origin:	Liaoning, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DL20MH

Production Capacity: 40 SETS PER MONTH

Delivery Date: 2 months

Raw Material: Sheet / Plate Rolling

Extra Services: Machining

Certification: CE

Brand Name: DHKJ

Max cutting diameter (shaft/disc): 260mm/380mm

Means of Transport: Ocean

Packing: Seaworth Packing

Power: Cnc

Machine Type: Others

Automation: Automatic

Material / Metal Processed: Stainless Steel

Max swing diameter: 440mm

Max cutting length: 500mm/900mm

DL-MH series are 3 axis turning centers for turning and milling parts in a single setup. The machines are controlled by FANUC system.

FEATURES:

1. One-piece casting with high rigid structure providing solid and stable performance

2. 45° slant bed with sound vibration absorbing features

3. Precision-ground ballscrews,pre-loaded nuts,high precision linear guideways,automatic lubricating system guarantee smooth transmission with sound static and dynamic characteristics

4. Integral wide-range AC spindle motor features high torque output at low speed

5. Turning,drilling,milling.ect achieved with one setup

8. Live tooling,C-axis,rigid tapping and robust tailstock generating state-of-the-art machining

7. Enclosed guards offers waterproof and chip-free environment

TECHNICAL PARAMETER:

Item	DL-20MH
	500	900
Max swing over bed (mm)	460
Max turning length(mm)	500	900
Max turning dia(various shafts)(mm)	260
Max turning dia(discs)(mm)	380
Chuck size	8"
Spindle nose	ISOA2-6
Spindle speed(r/min)	45-4500
Main spindle motor power(kW)	11/15
Dia of spindle through hole(mm)	76
Max bar dia(mm)	65
Min resolution	0.001
X/Z axis travel(mm)	265/700	265/1000
Rapid travel X and Z axis(mm/min)	24/24
Cutting feed X and Z axis(mm/min)	0-5000
X/Z servo motor torque(Nm)	12/12
Positioning precision of X/Z axis	0.01/0.012
Repetitive positioning precision of X/Z axis	0.004/0.006
Differential of forward to reverse	0.005/0.006
Turret type/Number of stations	live tooling could be located on all 12 position
Tool shank size(mm)	25×25
Mode for turret selection	Random
Indexing time(one step/full step)(s)	0.3/1.85
Quill dia(mm)	85
Quill travel(mm)	139
Spindle taper	MT.5
Max tail stock travel(mm)	90
CNC system	Fanuc 0i-T
Incline angle of bed guide way to horizontal	slant60°
Guide way of saddle side	linear way
Machine length(mm)	4140
Machine width(mm)	1797
Machine height(mm)	1795
Gross machine weight(kg)	4500
Package size(L×W×H )(mm)	3780×2200×2450 4180×2200×2450
